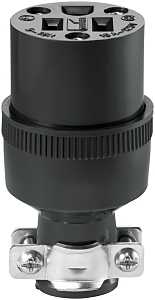

PRODUCT OVERVIEW
Meets all UL 498 requirements. Terminals in individual chambers to positively insulate conductors. Combination slot/Phillips head mounting and terminal screws. UL listed, CSA certified. Not NOM certified.
Product Details
Cable/ Wire Size:
1/4 to 39/64 in
Color:
Black
Current Rating:
15 A
Dimensions:
2.9 in L x 1.54 in W x 1.36 D
Material:
Thermoplastic
Mounting Type:
Screw
N E M A Configuration:
NEMA 5-15
Number of Poles:
2
Number Of Wires:
3
Operating Temperature:
-20 to 60 deg C
Type:
Straight Blade
Voltage Rating:
125 V
Features
- Solid brass plug blades are firmly embedded in body
- Thermoplastic rubber plugs and connectors maintain flexibility in extremely low temperatures
- Terminals in individual chambers to positively insulate conductors
- Terminal screw clamps are designed to contain wire and prevent binding
- Terminal screws backed out ready for wiring
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
